Acople aluminio D 1"

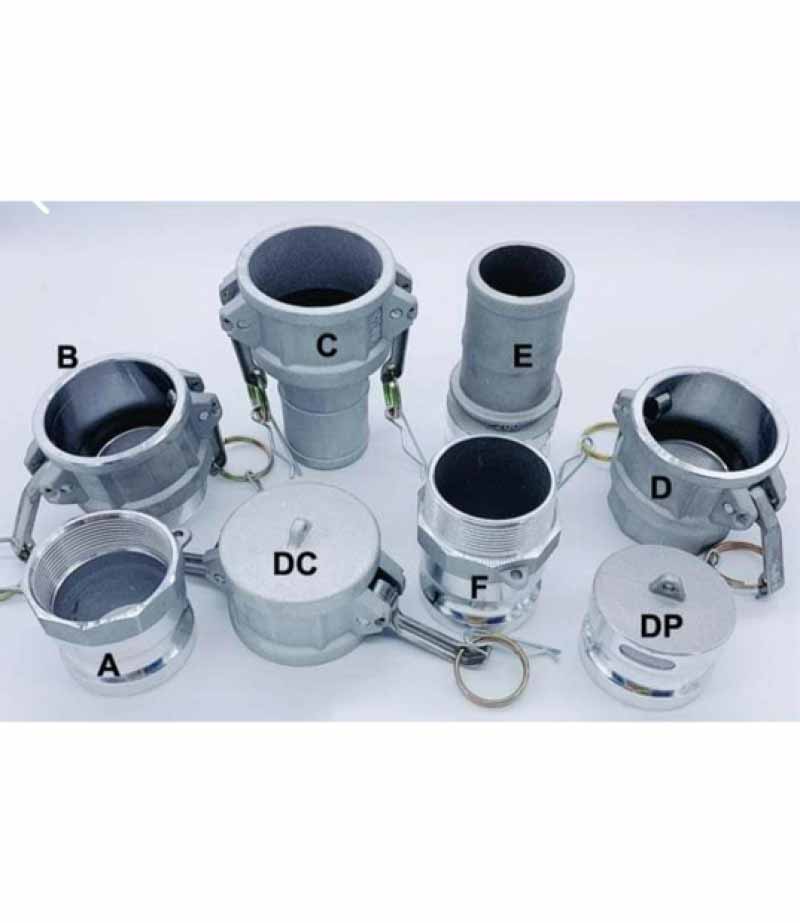

Acoples metalicos de aluminio tipo bombero

Tamaños disponibles: 1", 1 1/2", 2", 3"

Rosca hembra

[email protected] www.actionsealtite.com +44 (0) 1235 512500
DS-1701-1-A
Code Size Connection Material Seal Pressure BAR
Part A Male Adaptor by Female Thread
075A-AL 3/4” Male Adaptor by Female Thread Aluminium NA 10
075A-PG 3/4” Male Adaptor by Female Thread Polypropylene NA 4
075A-SS 3/4” Male Adaptor by Female Thread Stainless Steel 316 NA 10
100A-AL 1” Male Adaptor by Female Thread Aluminium NA 10
100A-PG 1” Male Adaptor by Female Thread Polypropylene NA 4
100A-SS 1” Male Adaptor by Female Thread Stainless Steel 316 NA 10
125A-AL 1 1/4” Male Adaptor by Female Thread Aluminium NA 10
125A-PG 1 1/4” Male Adaptor by Female Thread Polypropylene NA 4
125A-SS 1 1/4” Male Adaptor by Female Thread Stainless Steel 316 NA 10
150A-AL 1 1/2” Male Adaptor by Female Thread Aluminium NA 10
150A-PG 1 1/2” Male Adaptor by Female Thread Polypropylene NA 4
150A-SS 1 1/2” Male Adaptor by Female Thread Stainless Steel 316 NA 10
Camlock Fittings: EcoCam
www.actionsealtite.com/products/camlock-fittings/ecocam/
Camlock Fittings: EcoCam
Technical Specification
• Sizes 3/4” - 4”
• Available in Aluminium, Brass & Polyproplyene
• Seals Buna Nitrile
• 4-10 Bar Maximum working pressures
• Suitable for liquids, powders & granules
• Interchangeable with various other camlocks
• Passed the Action Three Point Quality Control checks
NOW AVAILABLE IN HALF INCH
Features & Benefits
• Straight-through connection
• Light-weight
• Economical
Applications
• Light to medium duty
• Pipe, hose, tubing & tanks
• Conveying chemicals,
cosmetics, food & drink
1
[email protected] www.actionsealtite.com +44 (0) 1235 512500
Camlock Fittings: EcoCam
www.actionsealtite.com/products/camlock-fittings/ecocam/
Camlock Fittings: EcoCam
DS-1701-1-A
Code Size Connection Material Seal Pressure Bar
200A-AL 2” Male Adaptor by Female Thread Aluminium NA 10
200A-PG 2” Male Adaptor by Female Thread Polypropylene NA 4
200A-SS 2” Male Adaptor by Female Thread Stainless Steel 316 NA 10
250A-AL 2 1/2” Male Adaptor by Female Thread Aluminium NA 10
250A-SS 2 1/2” Male Adaptor by Female Thread Stainless Steel 316 NA 10
300A-AL 3” Male Adaptor by Female Thread Aluminium NA 10
300A-PG 3” Male Adaptor by Female Thread Polypropylene NA 4
300A-SS 3” Male Adaptor by Female Thread Stainless Steel 316 NA 10
400A-AL 4” Male Adaptor by Female Thread Aluminium NA 10
400A-SS 4
