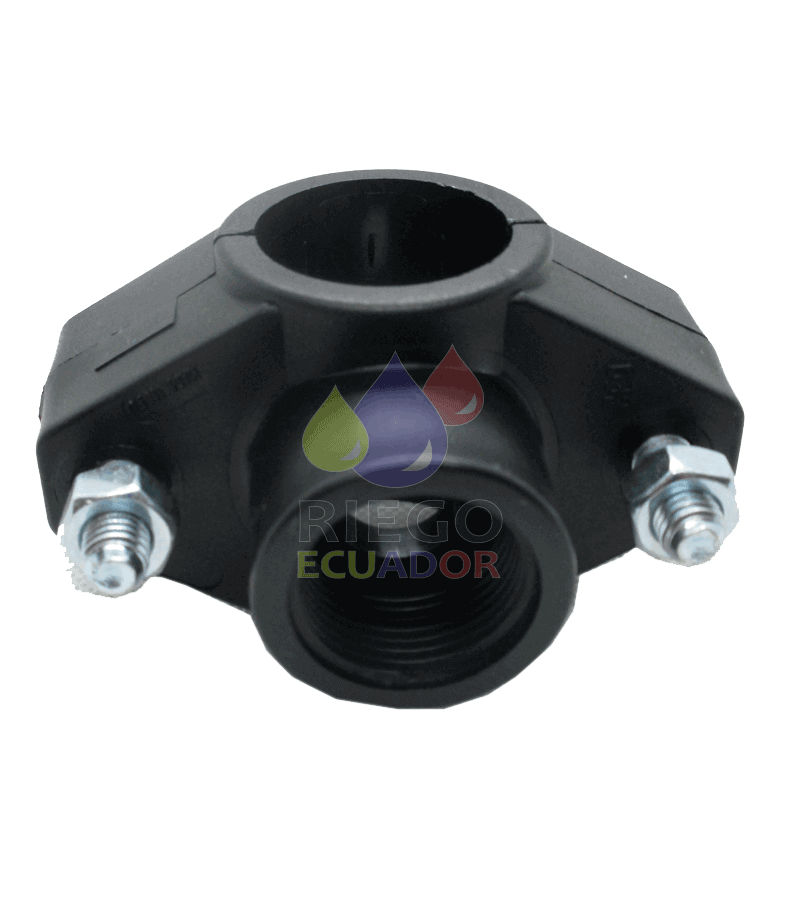

Montura 32 mm Rosca 1/2"

Montura italiana marca Irritec

Ideal para tuberia o manguera con diámetro exterior 32mm

Disponible con salida lateral en rosca hembra de 1/2", 3/4" y 1"

DESCRIPCIÓN od
MONTURA 20 X1/2"_ ITALIA 10bar
MONTURA 25 X 1/2" ITALIA 16bar
MONTURA 25 X 3/4"_ITALIA 16bar
MONTURA 32 X 1/2" ITALIA 16bar
MONTURA 32 X 3/4"_ITALIA 16bar
MONTURA 32X1" — ITALIA 16bar
MONTURA 40 X 1/2"_ITALIA 16bar
MONTURA 40 X3/4" ITALIA 16bar
MONTURA 40X1" ITALIA 16bar
MONTURA 50 X 1/2" ITALIA 16bar
MONTURA 50 X 3/4"_ITALIA 16bar
MONTURA 50X1" ITALIA 16bar
MONTURA 63 X 1/2"_ ITALIA 16bar
MONTURA 63 X3/4" ITALIA 16bar
MONTURA 63 X 1" ITALIA 16bar
MONTURA 63 X1 1/2" ITALIA 10bar
MONTURA 75 X 1/2"_ITALIA 16bar
MONTURA75 X3/4" ITALIA 16bar
MONTURA75X1_ ITALIA 16bar
MONTURA 90 X 1/2" ITALIA 16bar
MONTURA 90 X 3/4"_ITALIA 16bar
MONTURA 90X1" ITALIA 16bar
MONTURA 110X 1/2" ITALIA T6bar
MONTURA 110 X 3/4" ITALIA. 16bar

MONTURA 110X 1" ITALIA 16bar

Fittings and valves high pressure
Clamp saddles



CLAMP SADDLES

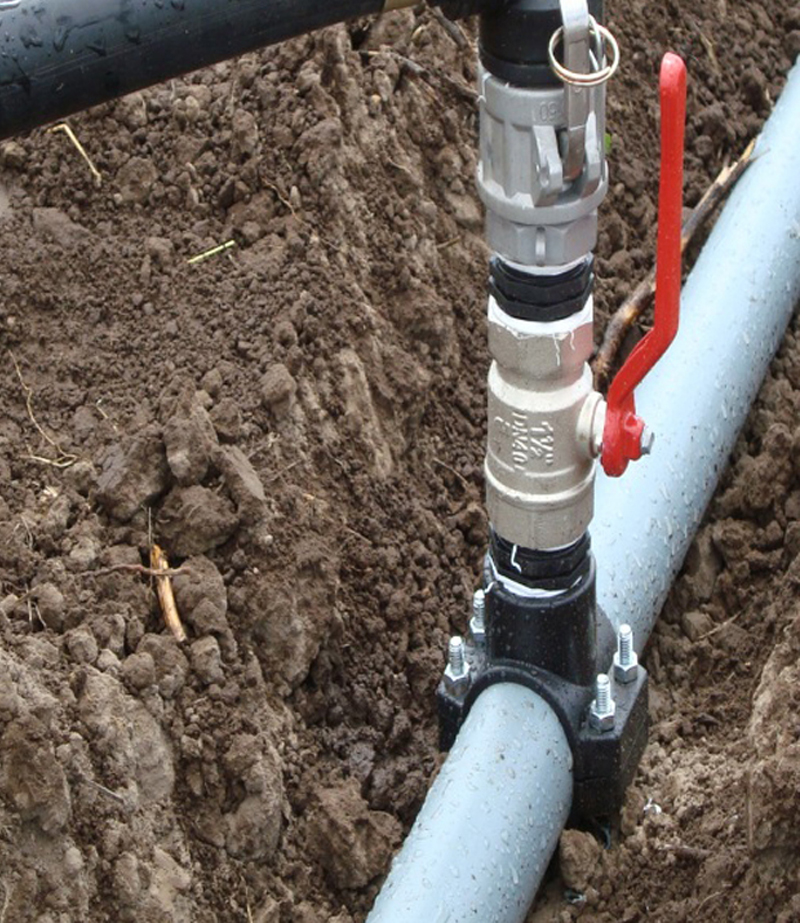

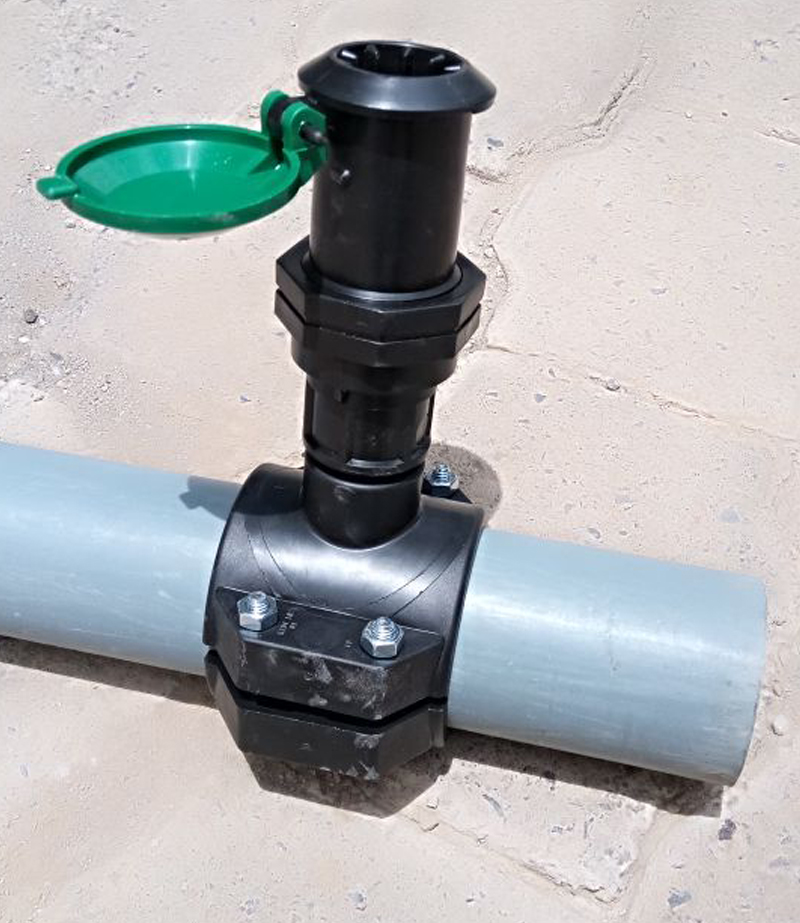

The Clamp Saddle line has been designed for side outputs on Polyethylene pipes
(PE) and it is available in the following range of sizes:

+ Item 103/104 with single or double output. They have diameters for the coupling with
Y 20 to Y 315mm pipes and threaded outputs (1/2” to 3”), provided with 2, 4 and 6
bolts according to the diameters.

+ Item 105/106 with single or double output. They have diameters for the coupling with
Y 20 to Y 315mm pipes and threaded outputs (1/2” to 4”), provided with 2, 4 and 6
bolts according to the diameters, and reinforcing ring on threads.













Materials OA
Parts Material Colour
iy Black mastered polypropylene copolymer with a bad e eS

and lid (A) high level of stabilization to UV tc om
Gasket (B) Acrylonitrile elastomeric rubber (NBR) 70 Shore A black E

Reinforcing ring (C) Stainless steel AISI 430 for model 105-106 only - un
Nuts and bollts in zinc-plated steel hexagonal head Zinc -

Bolts (D) screws threaded UNI 5739 chromate
Nuts according to standard UNI 5588. steel a
(1

Sanitary Prescriptions
The Clamp Saddle line is suitable for conveying food fluids because ¡ts materials comply with the applicable national and international
standards.

Lab tests
The high quality of the products is guaranteed by periodical quality audits, through strict lab tests, under the most severe testing conditions.

Working Pressures
The Clamp Saddle line allows a maximum working pressure (PN — PFA*) from 4 to 16 bars, at a temperature of 20 *C. See, in detail, the
PN - PFA* values reported in the tables for every single product.

Reference Standards

» PE pipes: UNI 7990, DIN 8074, UNI EN 12201

+ Threads: UNI ISO 7/1 , UNI ISO 228/1, ANSI
