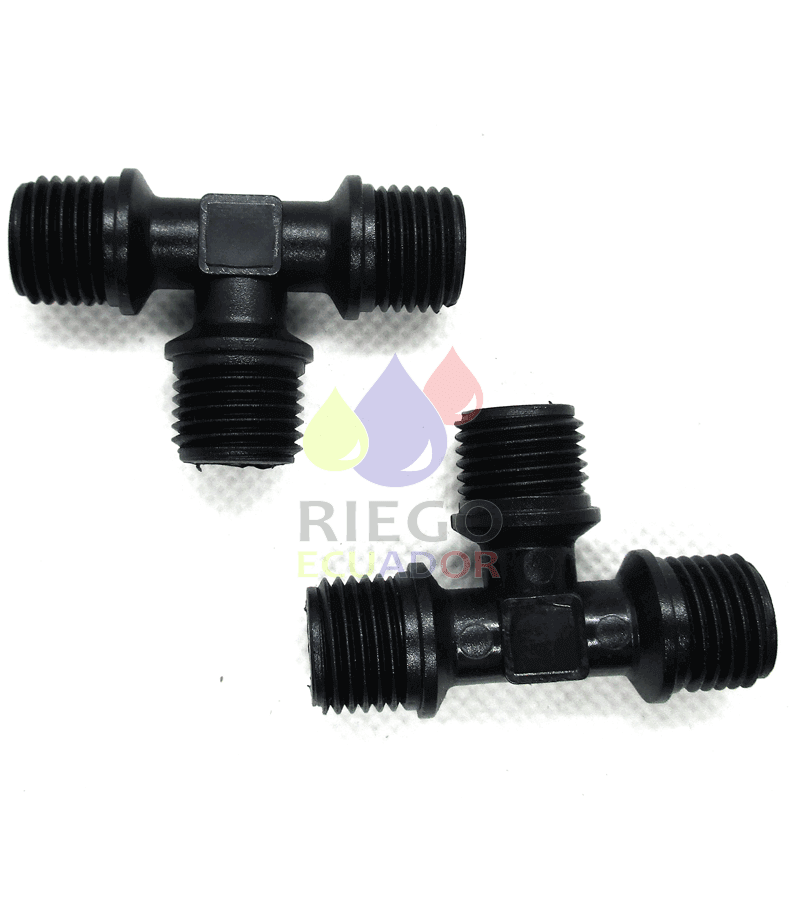

Tee TEFEN 8 mm x 1/8" ECO

Tee TEFEN

Disponible en tamaños:

8 mm x 1/4" x 8 mm

8 mm x 1/8" x 8 mm

8 mm x 8 mm x 8 mm

Ideal para manguera de 8 mm

Fittings
Tefen barb Block fittings are mechanical push- on compression fittings that can operate with numerus types of
common plastic tubes in the range between l/4"-1/2".
The fittings sealing system is based on a barb and a tightening nut.
How to make the connection: lnsert the nut onto the tube. insert the tube onto the barb and then clase and secure
the nut tightly on the bar support thread.
Main use: for the connection of plastic tubes on hydraulic and pneumatic systems.
Main Advantages: high chemical resistant. very strong resistant for tube pullout. no rubber seals- long lasting fittings.
42 FLOW & DOSING TECHNOLOGIES
Fittings - Barb Block r
Reinforced Polypropylene 0 Working pressure I Temperature
Up to 14 BAR 4 ºC - 90 ºC
(200 psi) at 20 ºC 1 (subject to application)
.L Fittings' dimensions
, refer to tube ID or 00, t with respect to the
common application.
Union Connector
Cat. No. 1 Tube 0D mm I L mm 1 sw
1
Color
22046246008 6 32.7 14 ■ 81ue
22046248008 8 32.7 14
22046252008 12 40,6 19
Cat. No. Tube 0D inch L mm SW Color
22046204008 ¼" 32.7 14 ■ Navy 8lue
22046205008 ~6" 32.7 14
22046208008 ½11 40.6 19
Cat. No. Tube 0D inch Lmm SW Color
22246204003 ¼" 32.5 14 ■ Grey
22246205003 !½6" 32.6 14
22246208003 ½" 40.4 19
Note: Packing 25 unit
Reducing Connector
lmij,¡,.11j11L@ij11,j■ 11j11::¡ 11j11W+J■W@j,j,
22045648468 r 8 l 6 t 32.7 t 14 li81ue _
Note: Packing 25 unit
FLOW PRODUCTS - FITTINGS 43
Fittings - Barb Block
Reinforced Polypropylene 0 Working pressure I Temperature
Up to 14 BAR 4 ºC - 90 ºC
(200 psi) at 20 ºC 1 (subject to application)
BSPT Male Connector
Cat. No. Tube 00 mm M (BSPT) Lmm sw
22046846028 6 1/a" 27.5 13
22046846048 6 ¼" 29.7 14
22046846068 6 3/all 32.5 17
22046846088 6 ½" 35.5 22
22046846128 6 ¾" 36.6 27
22046848028 8 1/a" 27.6 13
22046848048 B ¼" 29.5 14
L 22046848068 B 3/811 31.4 17
22046848088 8 ½" 36.1 22
22046848128 8 ¾" 36,6 27
22046850048 10 ¼" 35.8 17
0D M SW 22046850068 10 3/a" 35.8 17
22046850088 10 ½11 38.9 22
22046850128 10 ¾" 39.7 27
22046852048 12 ¼" 37.3 14
22046852068 12 3/s" 37.3 17
22046852088 12 ½11 40.1 22
22046852128 12 ¾" 40.1 27
22046848022 8 Ya" 27.6 13
22046852082 12 ½" 40.1 22
22046846042 6 ¼" 29.7 14
22046848042 8 ¼" 29,5 14
22046848062 8 3/a" 31.4 17
22046852042 12 ¼" 37.3 14
22046852062 12 3/811 37.3 17
Cat. No. Tube 00 inch M (BSPT) Lmm sw
22046804028 ¼º 1/s" 27.5 13
22046B0404B ¼º ¼" 29.7 15
22046804068 ¼º 3/a" 32.5 17
22046804088 ¼" ½" 35.5 22
22046804128 ¼º ¾" 36.6 27
22046805028 5Jí6" 1/s" 27.6 13
22046805048 5Jí611 ¼" 29,5 14
22046805068 s¡;611 3/e" 31.4 17
22046806048 3/
