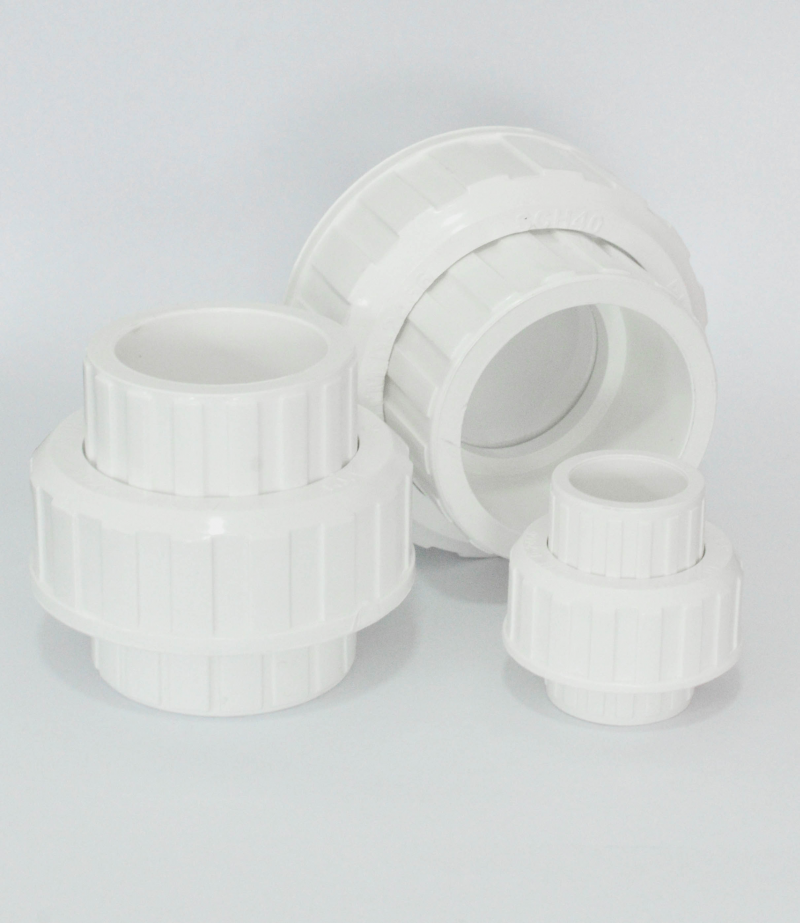

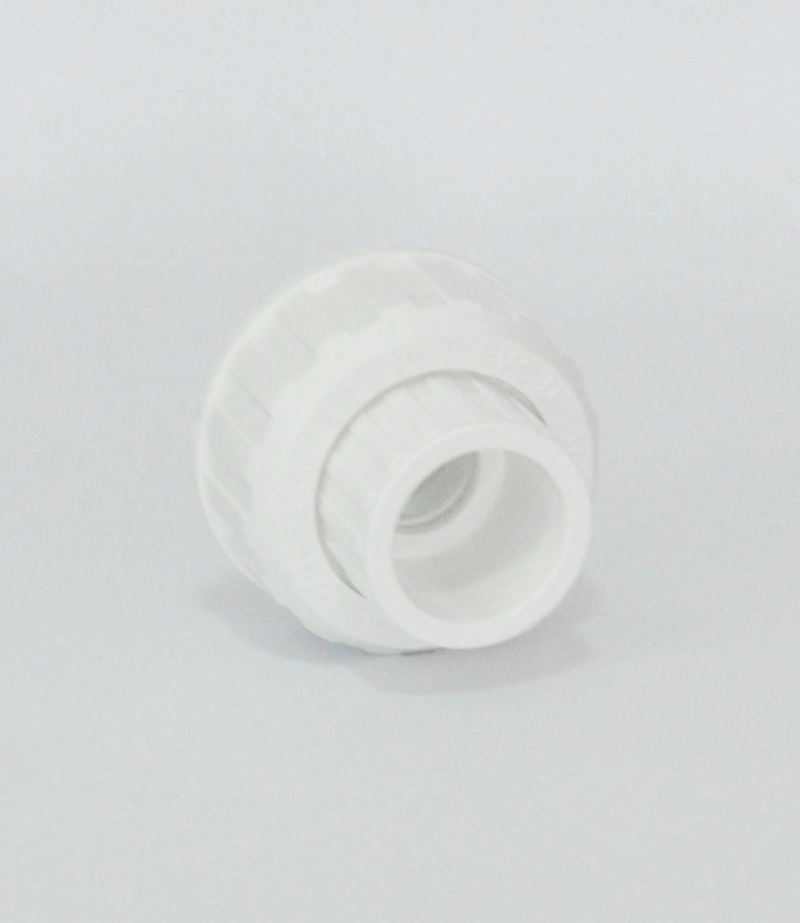

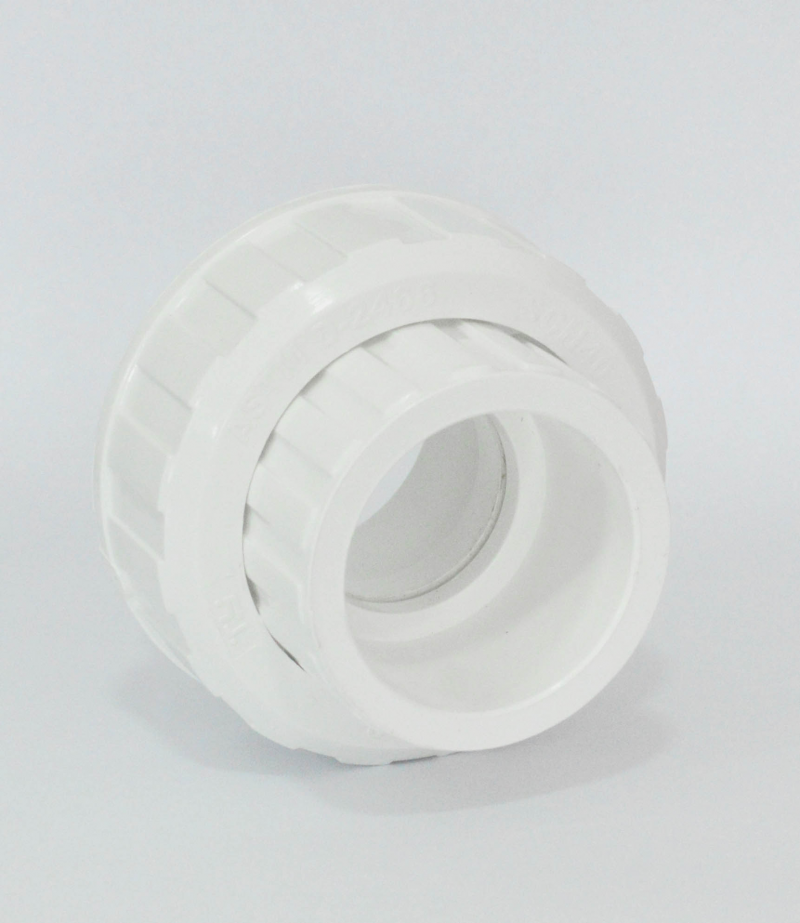

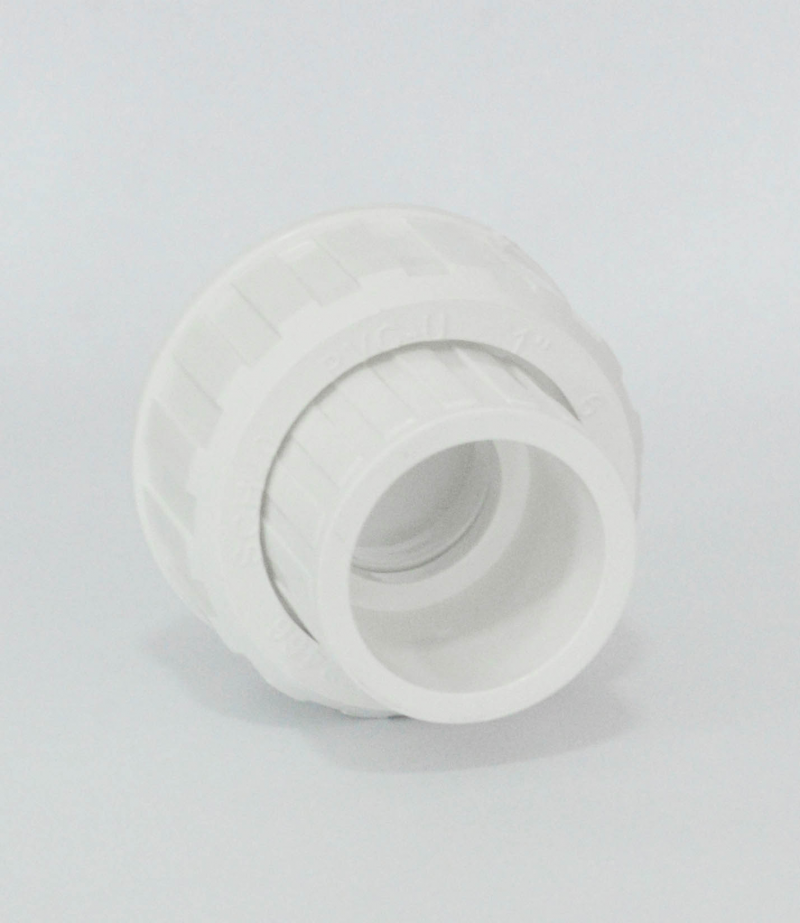

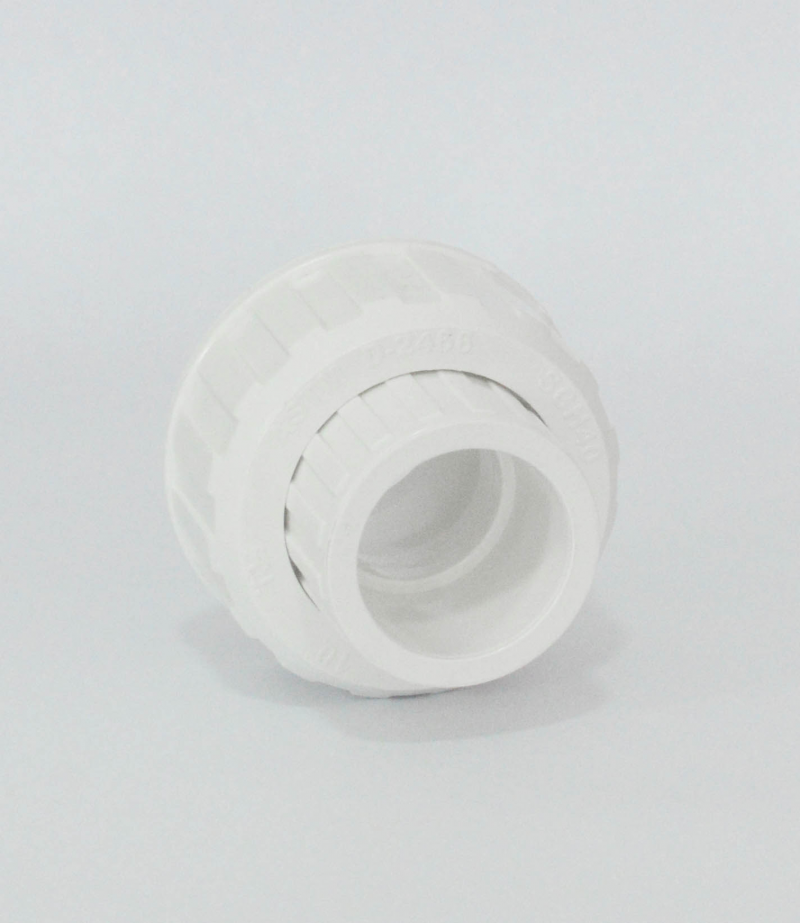

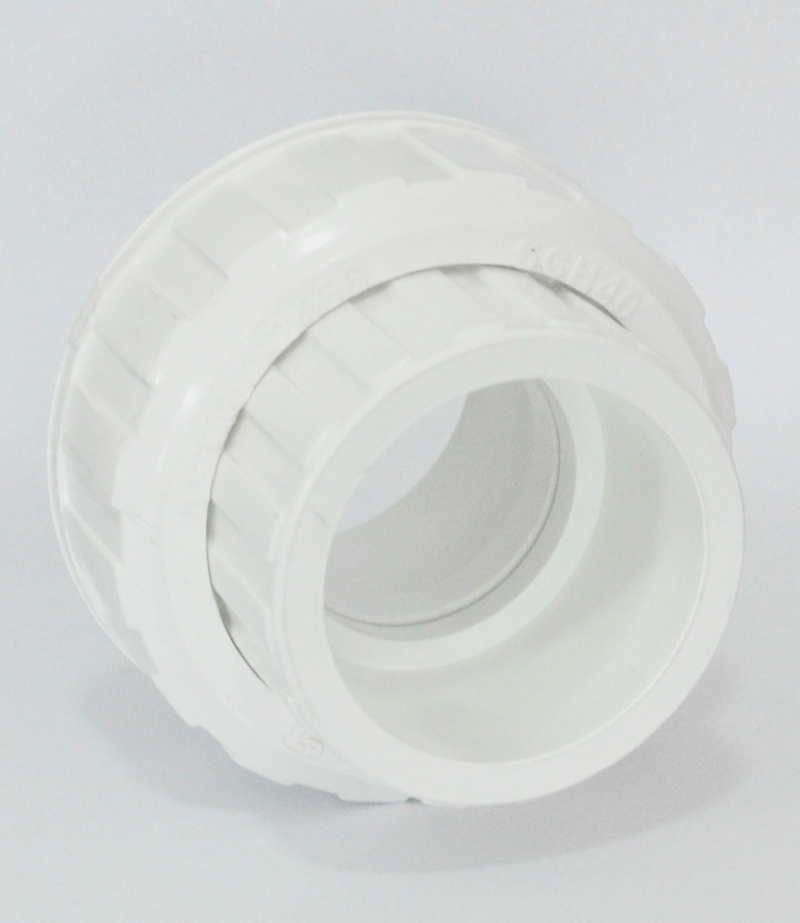

Universal pegable PVC 1/2"

Universal pegable para tubería PVC

Disponible en 1", 1/2", 1 1/2", 2", 3/4"

■
PVC-U PN16 HIGH PRESSURE PIPING SYSTEM (DIN8063)
PVC-U PN16 HIGH PRESSURE PIPING SYSTEM
(DIN8063)
INTRODUCTION
As the series of piping network products for water supply and drainage with mature technology, Pipes and fittings of PVC-U are one
of the largest outputs for plastic products in the wo rld, which already had been used widely both at home and abroad. For TIANYAN
PVC-U water supply piping network, t he raw materials and finished products a re both match ar exceed the relative standards. So
TIANYAN PVC-U piping network can suit for the equipments of drinking water supply. The piping networks are designed for the
uninterrupted supply of water condition from 20º( to SOºC. Under this condition, service life of piping network can up to 50 years.
TIANYAN PVC-U piping network have the full series size and model of fittings for building water supply, which can suit for many kinds
of requirement.
The series of PVC-U PN16 pressure fittings can match the standard GB/T 10002.2 ar DIN 8063, and the series of PVC-U PN16 pressure
pipes can match the standard GB/T 10002.1 ar DIN 8063.
FEATURES OF PRODUCT
• High Flow Ability:
The inside and outside wall are smooth, the coefficient of friction is small, roughness is only 0.008 to 0.009, anti-fouling property is
strong, fluíd transport efficiency is enhanced 25% than cast iron piping network.
• Corrosion Resistant:
PVC-U material has strong resistance to most of acid and alkali. No rust, no antiseptic treatment. The service life is 4 times than
that of cast iron.
• Light Weight and Easy Installation:
Weight is very light. The density of PVC-U is only 1/5 to 1/6 of that of cast iron. The method of connection is very simple, and the
process of installation is very quickly,
• High Tensile Strength:
PVC-U has high tensile strength, and high shock strength. The piping network of PVC-U is not easy to break, and it works safety.
• Long Service Life:
The piping network with normal material can be used around 20 to 30 years, but the PVC-U piping network can be used longer
than 50 years.
• Cheaper Prices:
The price of PVC-U piping network are cheaper than that of cast iron.
FIELDS OF APPUCATION
Piping networks far water supply in building.
Piping networks far piping system in water treatment plant.
Piping networks far water farming.
Plping networks far irrigation, normal water t ransport for industry.
e PVC-U PN16 PIPE KOO -
PVC-U DIN PN16 PRESSURE PIPE
s1ze(mm) PN O(mm) Z(mm) L(m)
20 16 20 4-6
25 16 25 4-6
32 16 32 2.4 4-6
40 16 40 3.0 4-6
50 16 50 3.7 4-6
63 16 63 4.7 4-6
75 16 75 5 .6 4-6
90 16 90 6.7 4-6
110 16 110 6.6 4-6
140 10 140 8.3 4-6
160 10 160 9.5 4-6
200 10 200 11.9 4-6
250 10 250 14.8 4-6
• 90 DEG ELBOW
PVC-U DIN 90" ELBOW (S
