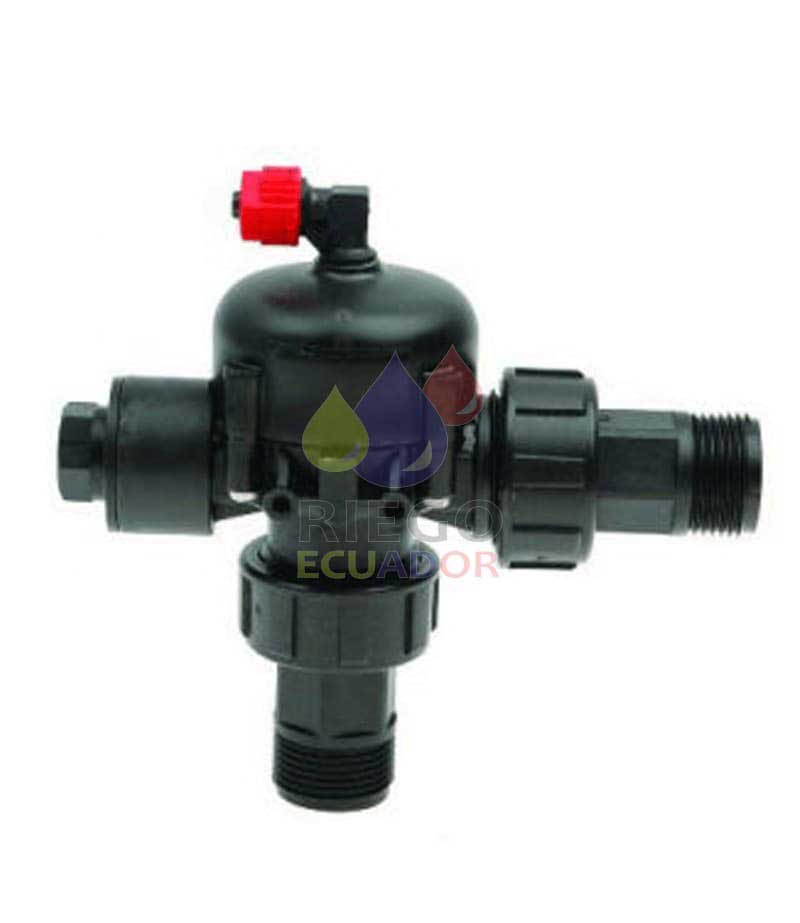

Valvula Normally Close 3/4"

Valvula Normally Close (Normalmente Cerrada)

Marca: AMIAD

Especialmente diseñada para paso de fertilizantes

Operación con comando hidráulico

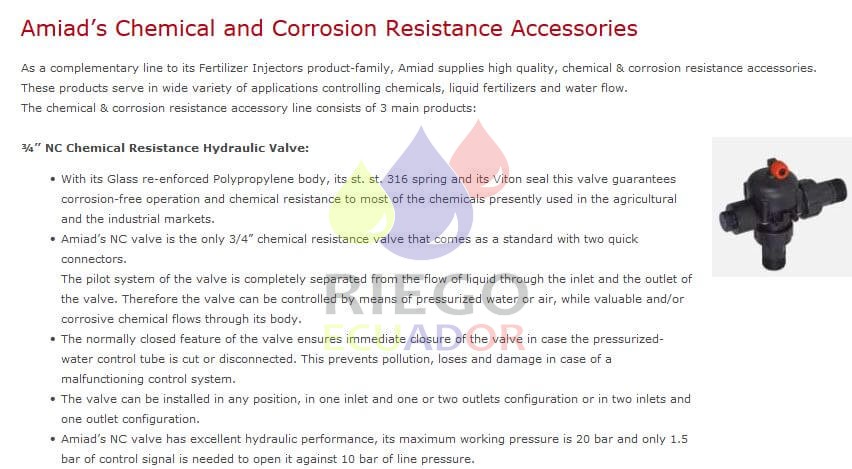

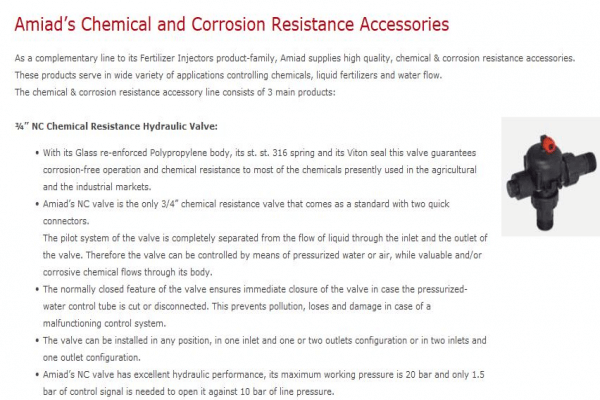

Amiad's Chemical and Corrosion Resistance Accessories

As a complementary line to its Fertilizer Injectors product-family, Amiad supplies high quality, chemical 8. corrosion resistance accessories.
These products serve in wide variety of applications controlling chemicals, liquid fertilizers and water flow.
The chemical 8: corrosion resistance accessory line consists of 3 main products:

3" NC Chemical Resistance Hydraulic Valve:

+ with its Glass re-enforced Polypropylene body, its st. st./516 spring and its Viton seal this valve guarantees
corrosion-free operation and chemical resistance to most of the chemicals presently used in the agricultural
and the industrial markets.

+ Amiad's NC valve is the only 3/4" chemical resistance valve that comes as a standard with two quick
connectors.



The pilot system of the valve is completely separated fromtheflowoPliquid*thraugh the inlet and the outlet of
the valve. Therefore the valve can be controlled "By means of pressurized ater'or air, while valuable and/or
corrosive chemical flows through its body.

+ The normally closed feature of the valve ensures immediate flasure ¿the valve in case the pressurized-
water control tube is cut or disconnected. This prevents pollution, loses and damage in case of
malfunctioning control system.

+ The valve can be installed in any position, in one inlet and one or two outlets configuration or in two inlets and
one outlet configuration.

+ Amiad's NC valve has excellent hydraulic performance, its maximum working pressure is 20 bar and only 1.5
bar of control signal is needed to open it against 10 bar of line pressure.

Accesorios de resistencia química y a la corrosión de Amiad

Como línea complementaria a su familia de productos de inyectores de fertilizantes, Amiad suministra accesorios de alta calidad resistentes a la corrosión química.
Estos productos sirven en una amplia variedad de aplicaciones para el control de productos químicos, fertilizantes líquidos y flujo de agua.
La línea de accesorios químicos 8: resistencia a la corrosión consta de 3 productos principales:

Válvula hidráulica de resistencia química de 3" NC:

+ con su cuerpo de Polipropileno reforzado con Vidrio, su acero inoxidable. resorte de acero inoxidable/516 y su sello de Viton esta válvula garantiza
operación libre de corrosión y resistencia química a la mayoría de los productos químicos que se utilizan actualmente en la agricultura
y los mercados industriales.

+ La válvula NC de Amiad es la única válvula de resistencia química de 3/4" que viene como estándar con dos
conectores



El sistema piloto de la válvula está completamente separado del flujo
